Part Name: PCA82C250 (also listed as A82C250) AllDatasheet+2nxp.com+2
Manufacturer: NXP Semiconductors (formerly Philips) nxp.com+1
Description: A high-speed CAN (Controller Area Network) transceiver interface between a CAN protocol controller and the physical bus. nxp.com+1
Key Specifications / Features:
Fully compatible with the ISO 11898 standard. mi.fu-berlin.de+1
Supports high speed up to 1 Mbit/s. nxp.com+1
Bus lines are protected against transients in automotive environments (e.g., battery/ground short-circuit proof). nxp.com+1
Slope control for reduced Radio Frequency Interference (RFI). mi.fu-berlin.de+1
Differential receiver with wide common-mode range for high EMI (electromagnetic interference) immunity. nxp.com
Low-current standby mode. coecsl.ece.illinois.edu
Quick Reference Data:
Supply voltage Vcc: 4.5 V to 5.5 V. nxp.com
Maximum transmission speed: 1 Mbit/s. nxp.com
Differential bus voltage: 1.5 V to 3.0 V typical range. nxp.com
Ambient temperature range: –40 °C to +125 °C. coecsl.ece.illinois.edu

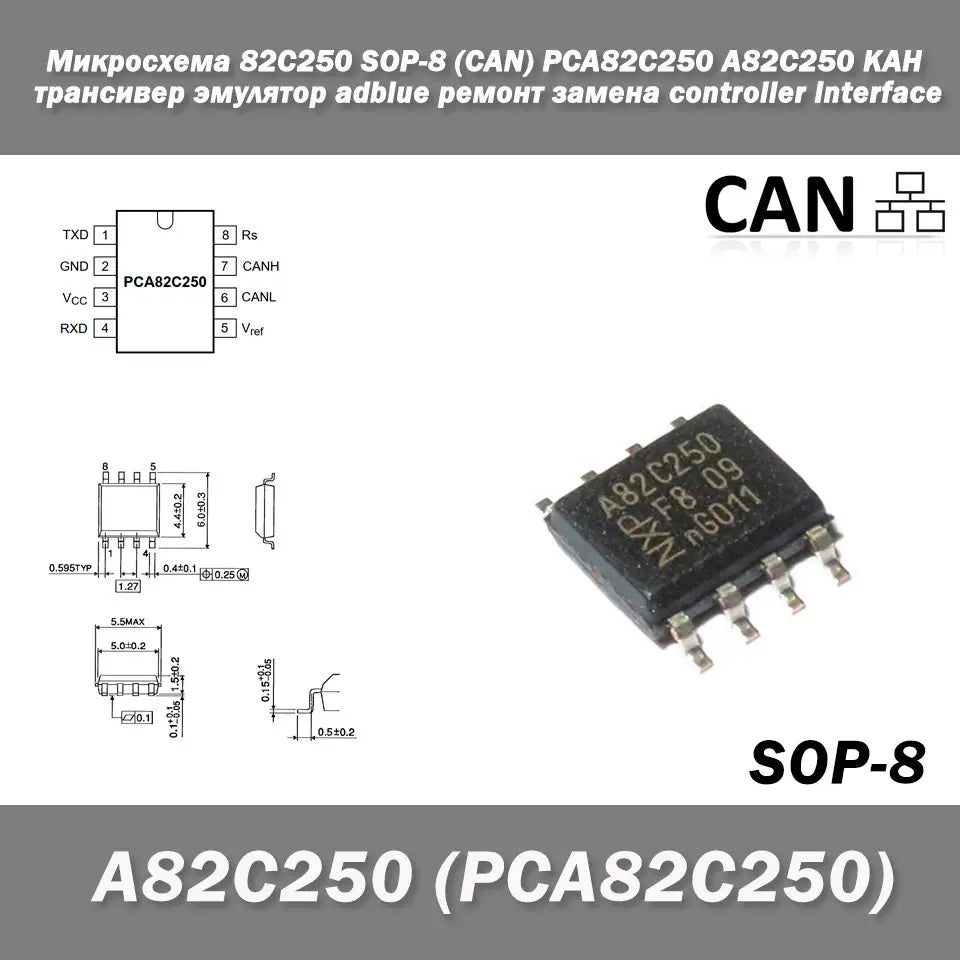

Package / Pin-out:
Documented for 8-lead packages (DIP-8 / SO-8) rather than 16-pin. For example: DIP8 plastic dual in-line package; 8 leads. mi.fu-berlin.de+1
It appears the part is not 16-pin but 8-pin for this version (please verify variant).
Applications:
Automotive CAN bus networks.
High-speed communication between controller and CAN bus.
Industrial CAN networks where the ISO-11898 standard is used.
